Introduction to Arduino



1. Introduction to Arduino

    Arduino is an open-source electronics platform that consists of hardware (Arduino boards) and software (Arduino IDE). It is used for building electronic projects, automation systems, IoT applications, robotics, and sensor-based applications. Arduino is widely used due to its ease of programming, affordability, and vast community support.

2. Features of Arduino

• Microcontroller-based platform (e.g., ATmega328P, ATmega2560)
• Open-source hardware and software
• Supports multiple programming languages (C, C++, Python with MicroPython)
• Built-in power regulation (5V, 3.3V supply)
• Analog & Digital I/O Pins for sensors and actuators
• Supports communication protocols (I2C, SPI, UART)
• Compatible with various sensors, displays, and actuators

3. Arduino Board Variants

Arduino comes in multiple versions designed for different applications. Some common models are:

Arduino Board	Microcontroller	Digital I/O	Analog Pins	Operating Voltage	Best Use Case
Arduino Uno	ATmega328P	14	6	5V	Beginners, small projects
Arduino Mega	ATmega2560	54	16	5V	Advanced projects, IoT
Arduino Nano	ATmega328P	14	8	5V	Compact projects, wearables
Arduino Leonardo	ATmega32U4	20	12	5V	Keyboard/mouse emulation
Arduino Due	AT91SAM3X8E	54	12	3.3V	High-speed applications
Arduino ESP32	ESP32	34	12	3.3V	WiFi & Bluetooth projects

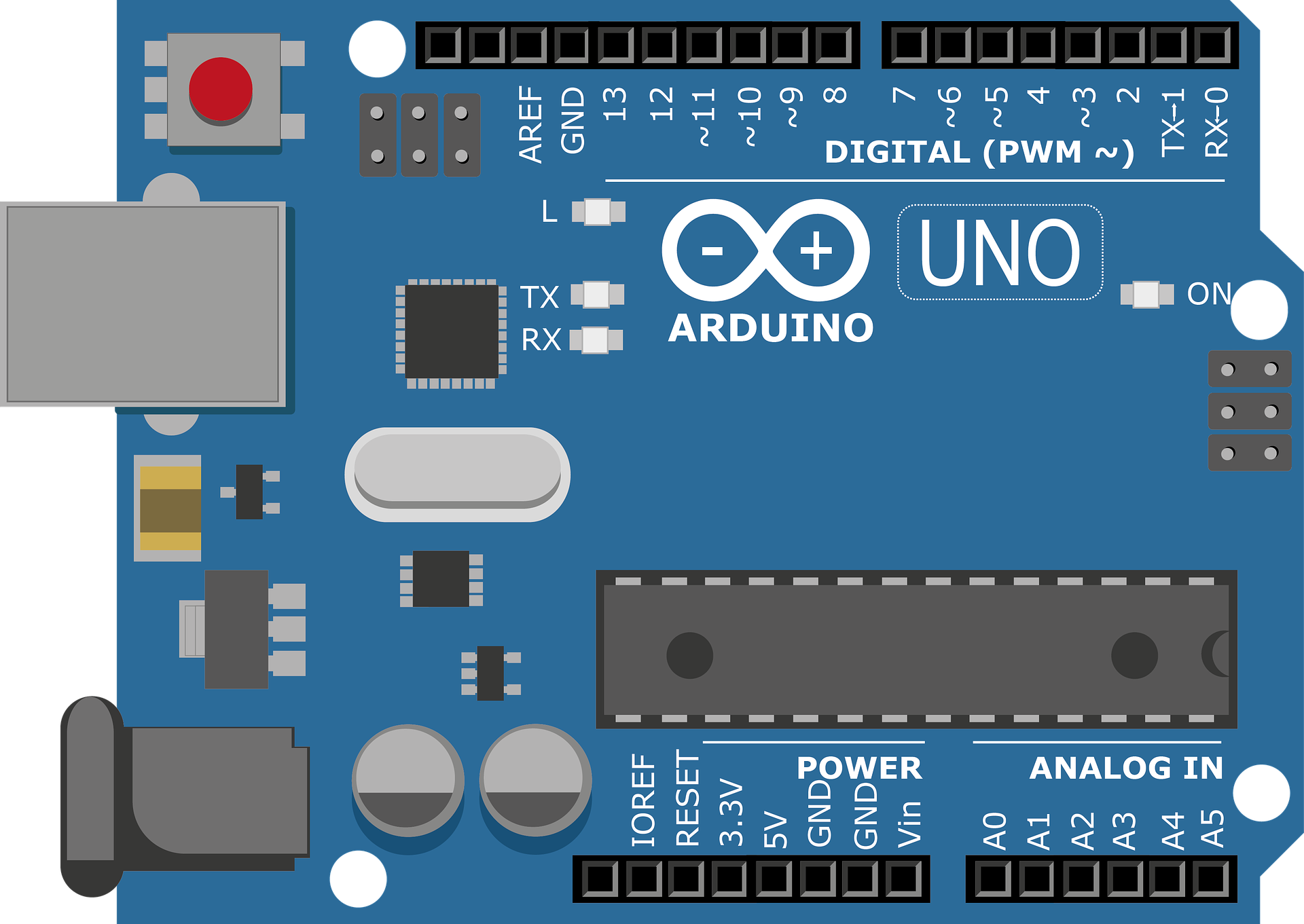

4. Arduino Architecture

An Arduino board consists of the following main components:

1.      Microcontroller Unit (MCU):

• The brain of the board that processes instructions (e.g., ATmega328P in Arduino Uno).

2.      Digital Input/Output Pins:

• Used to interface with LEDs, buzzers, motors, and other components.

3.      Analog Input Pins:

• Used to read sensor values (e.g., temperature, LDR, potentiometer).

4.      Power Supply (5V/3.3V):

• Provides power to sensors and modules.

5.      Clock Oscillator (16 MHz):

• Maintains timing operations for execution of instructions.

6.      USB Interface (USB-B, Micro-USB, or Type-C):

• Used for programming and serial communication with a computer.

7.      Reset Button:

• Restarts the board, useful for debugging.



5. Arduino Software (Arduino IDE)

The Arduino Integrated Development Environment (IDE) is used to write, compile, and upload code to Arduino boards. It supports:

• C/C++ programming language
• Serial monitor for debugging
• Libraries for sensors, motors, displays
• Board manager to support different Arduino models

Common Functions in Arduino IDE:

Function	Description
pinMode(pin, mode);	Configures a pin as INPUT or OUTPUT
digitalWrite(pin, HIGH/LOW);	Controls digital pins
digitalRead(pin);	Reads digital input
analogRead(pin);	Reads analog values (0-1023)
analogWrite(pin, value);	Outputs PWM signal (0-255)
delay(ms);	Delays execution in milliseconds
Serial.begin(baud_rate);	Starts serial communication



6. Arduino Programming Structure

Every Arduino program (called a sketch) follows a basic structure:

void setup() {

  // Runs once at the beginning

  pinMode(LED_BUILTIN, OUTPUT);

}



void loop() {

  // Repeats continuously

  digitalWrite(LED_BUILTIN, HIGH);

  delay(1000);

  digitalWrite(LED_BUILTIN, LOW);

  delay(1000);

}

Explanation:

·        setup() → Initializes settings (runs once).

·        loop() → Runs continuously (e.g., blinking LED).



7. Communication Interfaces in Arduino

Arduino supports multiple communication protocols:

·        Serial Communication (UART): Uses TX, RX pins for communication with sensors, Bluetooth modules, etc.

·        I2C Communication: Used for OLED displays, accelerometers, etc.

·        SPI Communication: Used for SD cards, RFID modules, etc.

Example: Serial Communication with Arduino

void setup() {
  Serial.begin(9600);  // Start serial communication
}

void loop() {
  Serial.println("Hello, Arduino!");  // Send data to the serial monitor
  delay(1000);
}

8. Applications of Arduino

Arduino is widely used in various domains, including:

1. Robotics & Automation

·        Obstacle-avoiding robots

·        Line-following robots

·        Home automation systems

2. IoT (Internet of Things)

·        Smart home control

·        Weather monitoring systems

·        Remote-controlled devices

3. Industrial Applications

·        Automated machinery

·        Predictive maintenance

·        Sensor-based monitoring

4. Smart Agriculture

·        Smart irrigation systems

·        Soil moisture monitoring

·        Weather prediction

9. Advantages of Arduino

1.  Easy to Use & Beginner-Friendly – Simple hardware and software setup.
2.  Open-Source & Affordable – Available for free with a large community.
3. Versatile – Supports multiple sensors, motors, and communication protocols.
4. Portable & Low Power – Ideal for embedded systems and battery-powered devices.
5. Strong Community Support – Thousands of resources, tutorials, and libraries available.

10. Conclusion

Arduino is a powerful micro-controller platform that simplifies hardware and software integration for students, hobbyists, and professionals. Its user-friendly interface,  strong community, and vast library support make it an excellent choice for learning embedded systems, IoT, and automation. With countless applications in robotics, smart systems, and industrial automation, Arduino continues to revolutionize the field of electronics and embedded development.
